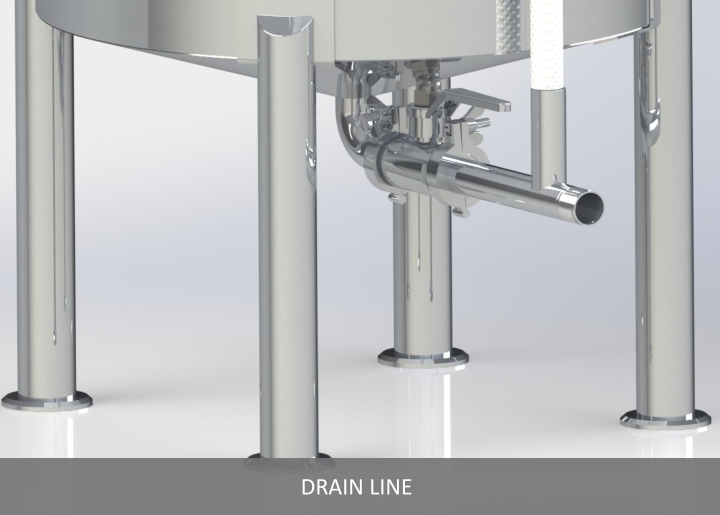

“Swiss” Bung Washing Machine is suitable for washing of rubber / latex stoppers for vials and bottles. Unit consists of outer container of AISI SS 316 with overflow through. Inner product holder is an AISI SS 304 perforated basket. The basket is then put in the outer container, washing water flows from a centrally located AISI SS 316 Pipe. Filtered compressed air is passed through specially designed sparger pipe which generates a highly velocity flow pattern and fluidizes the rubber stoppers.The water in the container can be heated if required, by an electric heater or a steam coil provided. After each wash-cycle quick draining possible with 1½” drain valve. All contact parts are made out of AISI SS 316 quality.
BUNG WASHING MACHINE
SALIENT FEATURES
- All Contact Parts are in AISI SS 316/316L and Non-Contact Parts are in AISI SS 304.
- Bung washing is a Critical part of the cleaning Process.
- All Contact Parts are in AISI SS 316/316L and Non-Contact Parts are in AISI SS 304.
- All Silicon / PTFE / Viton Gasket are in cGMP Pharma Food Grade.
- Sanitary Triclover Fittings are used for quick and easy Preventive Maintenance.
- Swiss Design As per ASME and cGMP Standard.
- Swiss Care: No Stagnant Point in Internal Surfaces.
- Fast Response to (bung cleaning) Demand.
- Special welding technique to avoid welding depressions inside chamber.
- The basket can be removed manually and bungs will be loaded in the baskets manually.
- Thermo Statical control.
