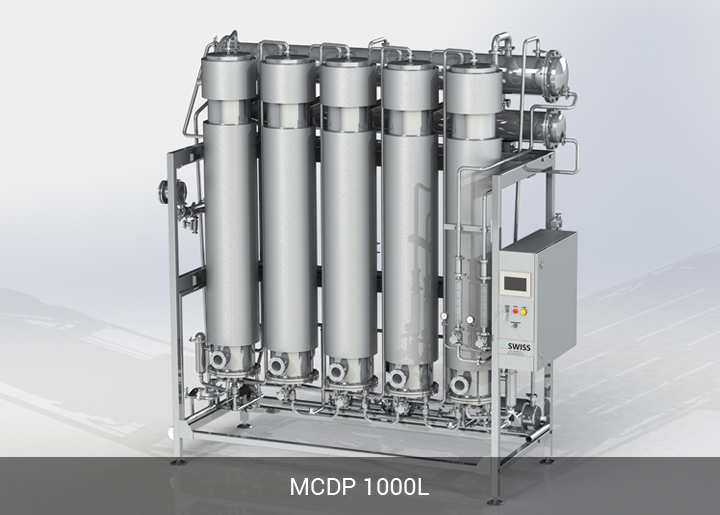

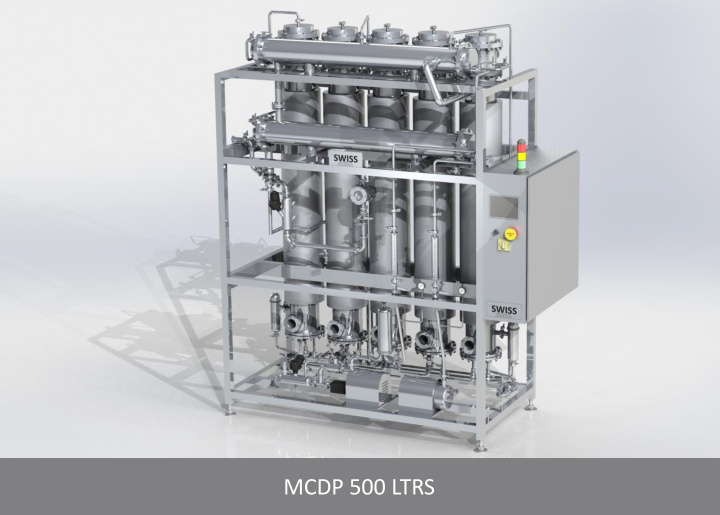

MULTI COLOUMN DISTILATION PLANT

“Swiss” Multi Column Distillation Plant is a key system for Injectable cGMP standard. Multi Column Distillation Plant is the perfect solution for high purity sterile pyrogen free distilled water which meets international standards; including India, British & United states Pharmacopoeia. The vapour with high velocity & under pressure passes over a ‘SPECIALLY DESIGNED SPIRAL BAFFLES’ system which develops tremendous centrifugal force & thus eliminates any chances of pyrogens in the carry over vapours. It is available in capacities from 50 Ltrs/Hr. to 5000 Ltrs/Hr. The Water for Injection (WFI) produced from Multi Column Distillation Plant is according to FINN AQUA Design & it is low maintenance & low operational costs.

SALIENT FEATURES

  • All Contact Parts are in AISI SS 316/316L and Non-Contact Parts are in AISI SS 304
  • To assure WFI quality & increase the life of equipment, inner contact surfaces are electro polished
  • Double tube sheets are constructed in the first column where boiler steam is present
  • Sanitary Triclover fittings are used for quick & easy preventive maintenance
  • All Pipes & Tubes are Seamless as per ASME & BPE stamping with less than 0.5Ra

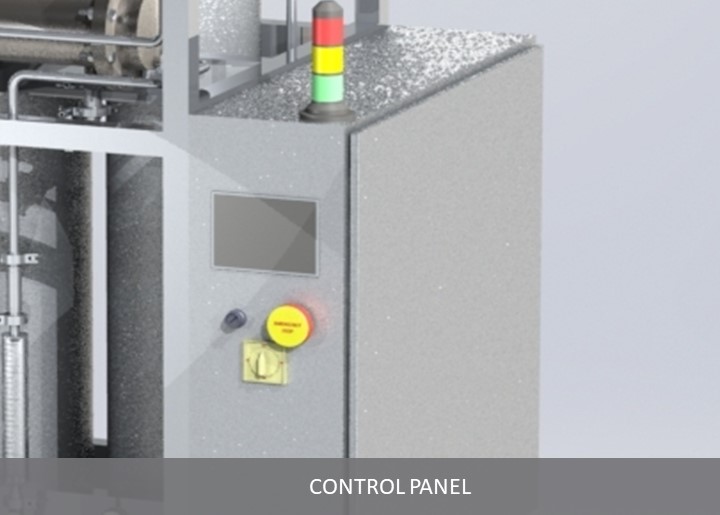

  • PLC based system for automated operation with all required inter locks & validated logic with skid mounted AISI SS 304 control panel with printing facility
  • All Silicon / PTFE / Viton Gasket are in cGMP Pharma Food Grade

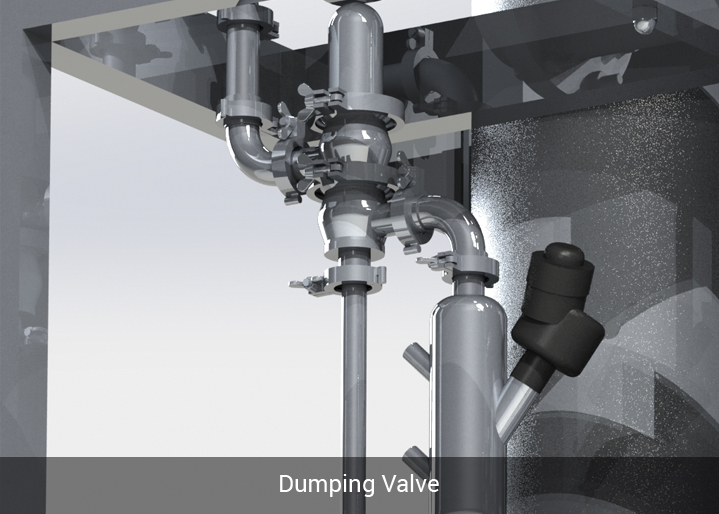

  • High Purity Flow Diversion Valve is provided for protection of WFI water quality
  • Insulation is made with 5cm mineral wool covered by AISI SS 304 sheet

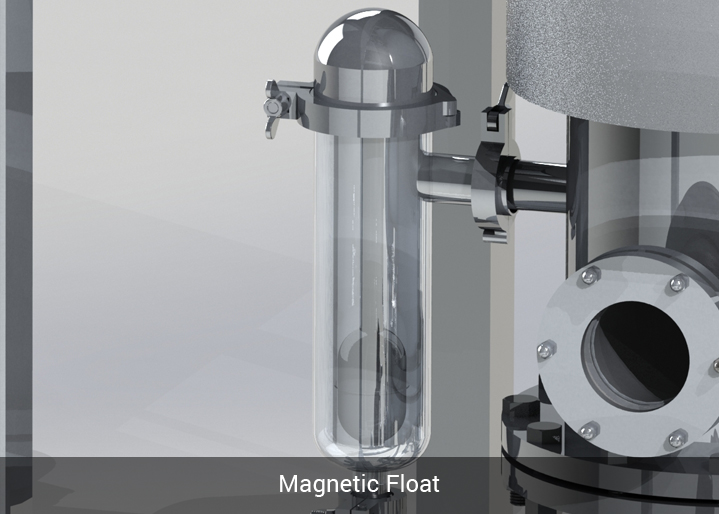

  • Magnetic Control System is provided for first & last column to control Water i.e. high level & low level
  • Distilled water passes through LAL TEST
  • Fast Response to (Distilled water) Demand
